Products Description

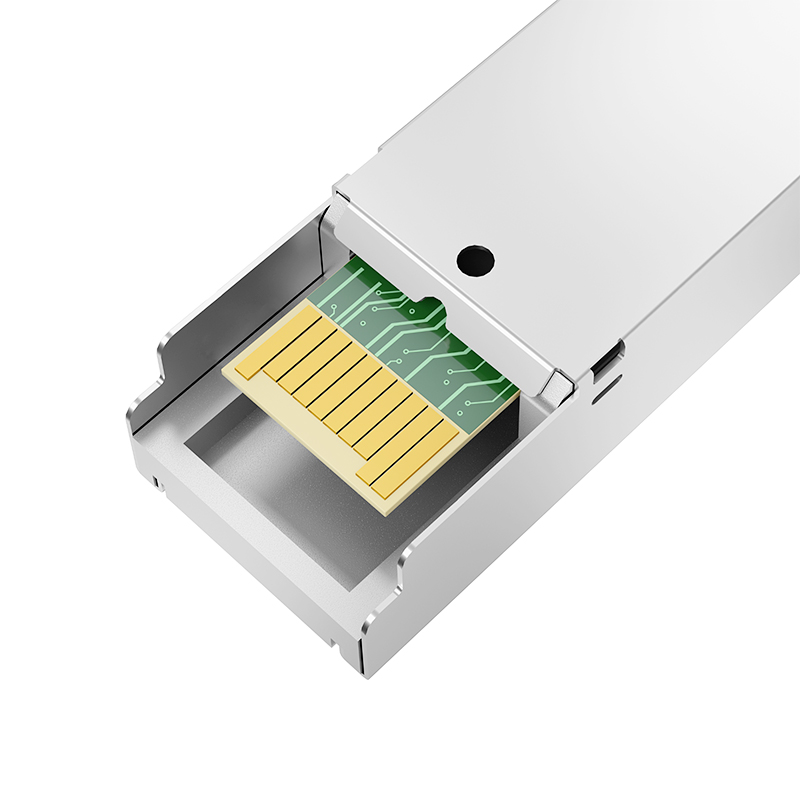

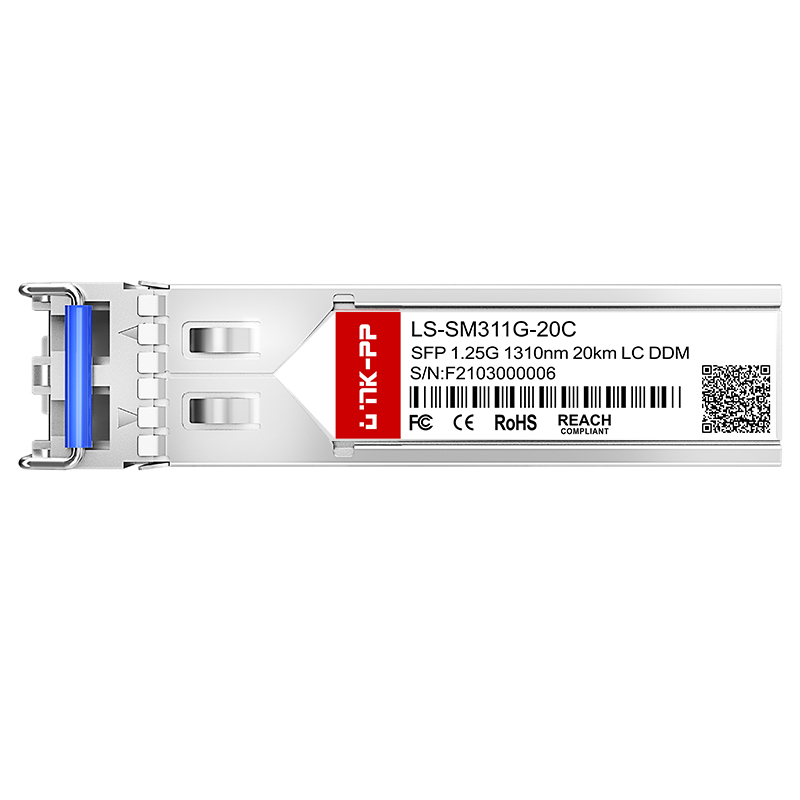

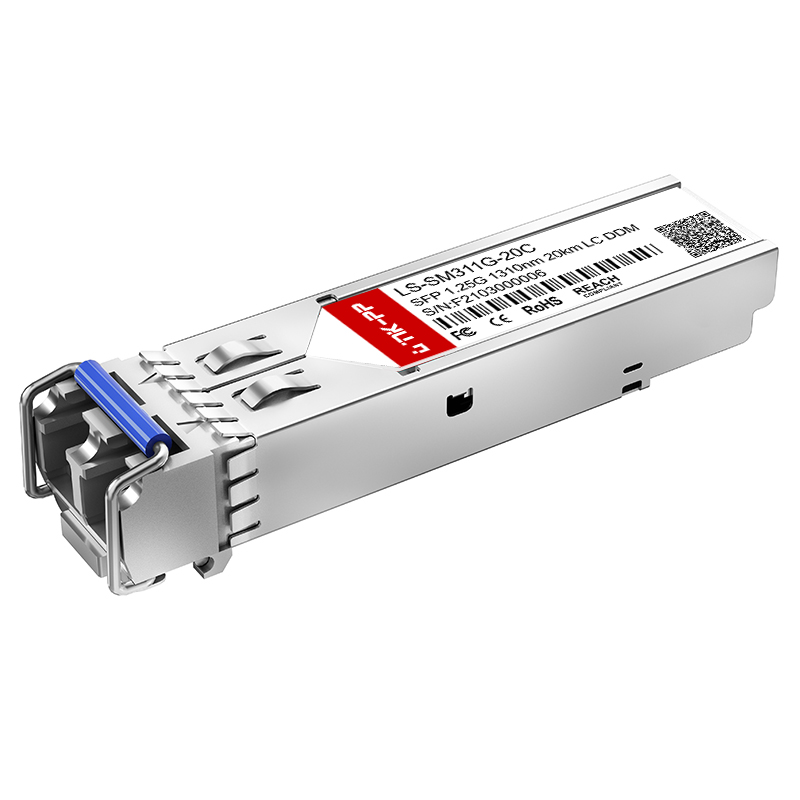

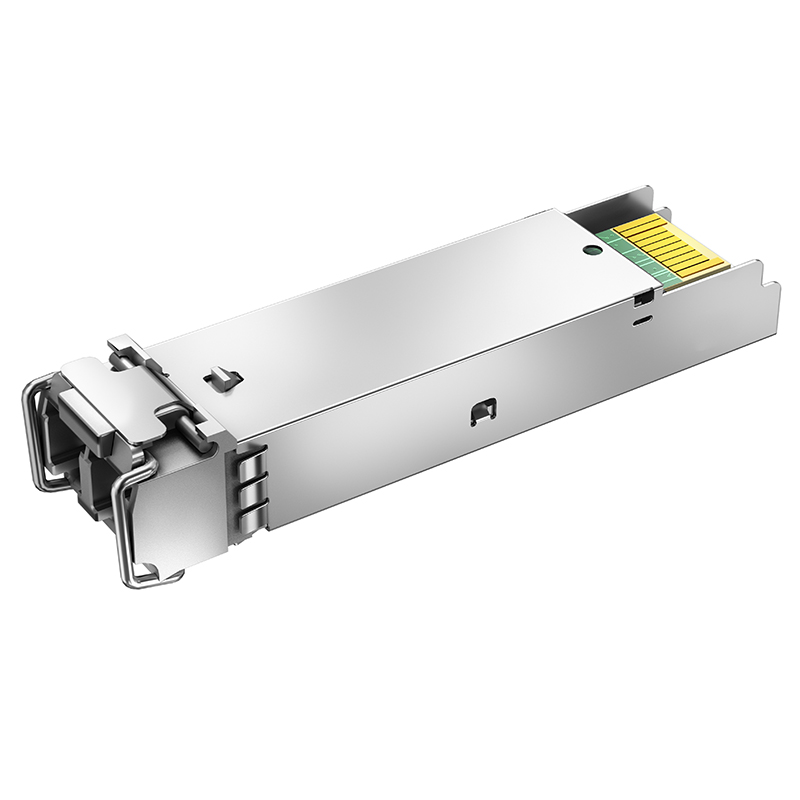

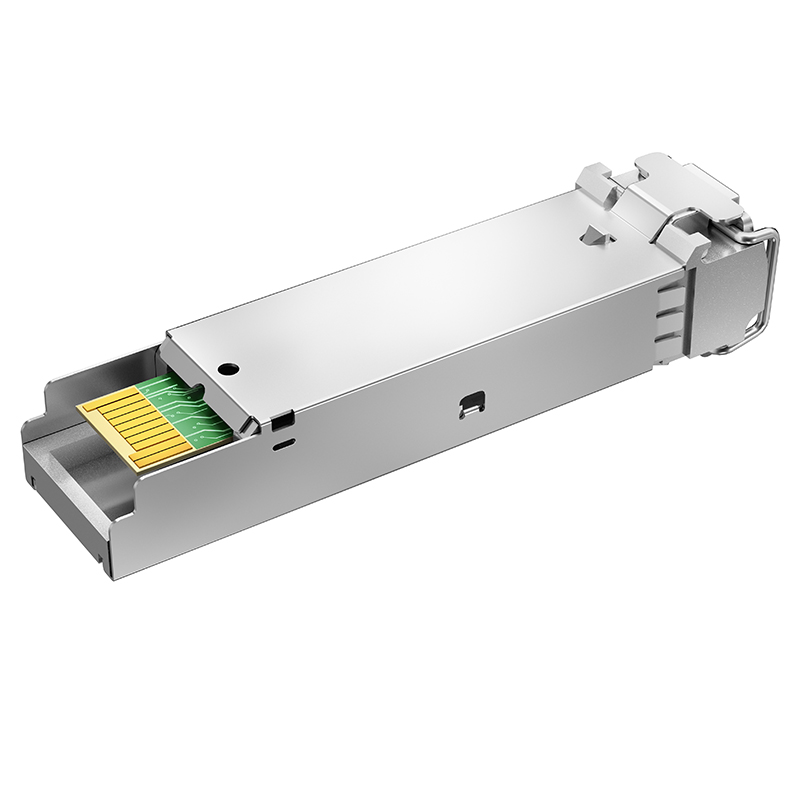

1000BASE-LX/LH SFP Transceiver 1310nm 20km Duplex LC SMF Optical Module
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1000Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Fiber Type | SMF |
| Media | 1x1 Port |
| Connector | Duplex LC |
| Power Consumption | <1W |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| EMC Support | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Warranty | 5 Years |
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
🌐
Optical Transport Networks
Providing end-to-end DWDM devices including active modules to optical passive devices like EDFA, RFA, Mux & Demux, OPM, ROADM, and OTDR.
☁️
Cloud and Enterprise
Meeting demand for mass data transmission with high-speed optical modules ranging from 10G to 800G for data center interconnections.
📶
Wireless
High reliability products for Dark Fiber, WDM, Radio over Fiber, and Back-haul scenarios in 4G/5G systems.
🏠
FTTx
Total fiber access solutions covered from all-optical or optical copper combined access products.
Related Products & Cage
Why Choose Us
Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities include advanced manufacturing and test equipment imported from abroad. Established in 1997, our production capacity reaches 3000K per month, enabling short delivery times. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, and WDM networks, offering high-speed interconnection solutions for cloud computing and ultra-broadband networks worldwide.
Frequently Asked Questions
What is the maximum transmission distance of this SFP module?
This 1000BASE-LX/LH SFP transceiver supports a maximum cable distance of up to 20km over Single-Mode Fiber (SMF).
Does this module support digital diagnostic monitoring (DDM)?
Yes, this module supports DDM/DOM functions, allowing you to monitor real-time parameters such as temperature, optical power, and voltage.
Can I request a sample before placing a bulk order?
Yes, samples are available for quality testing. Please contact our sales team to discuss sample availability and shipping arrangements.
What is the typical delivery time for mass production?
Items in stock are ready to ship immediately. For mass production orders, the standard lead time is generally between 15 to 30 days.
What kind of warranty and technical support do you provide?
We offer a 5-year warranty on our optical modules and provide 24-hour online technical support to assist with installation or troubleshooting.
Are your modules compliant with industry standards?
Yes, our modules are fully compliant with IEEE Std 802.3, 802.3ab, and SFP MSA standards, ensuring compatibility across various networking platforms.
