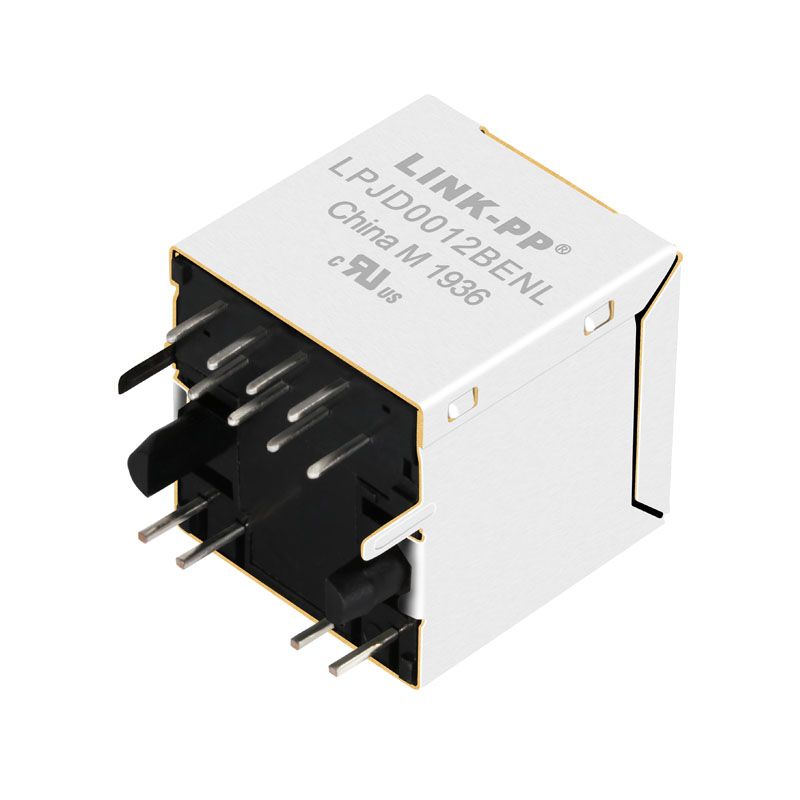

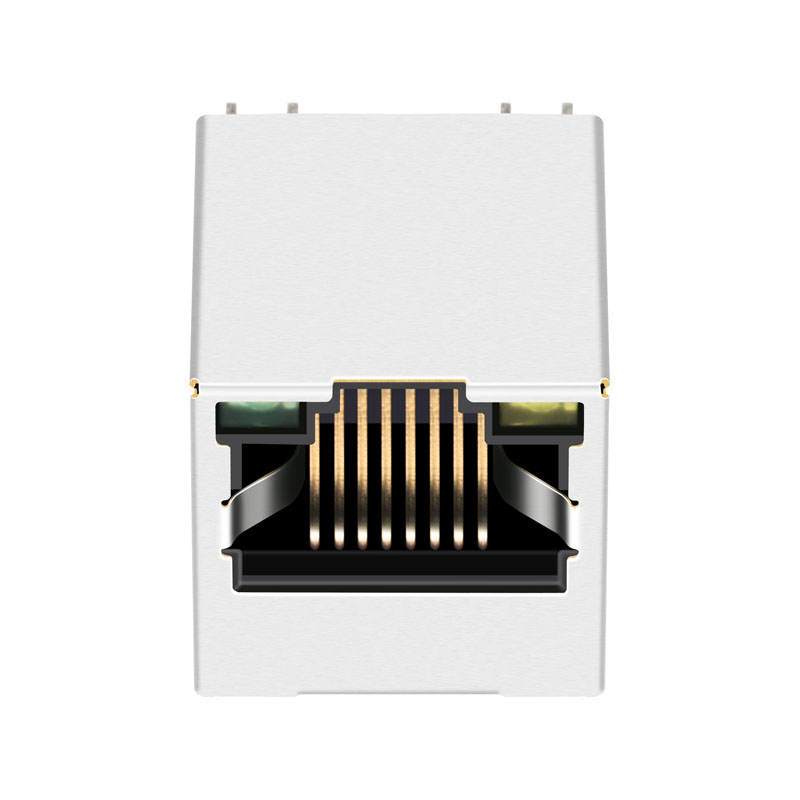

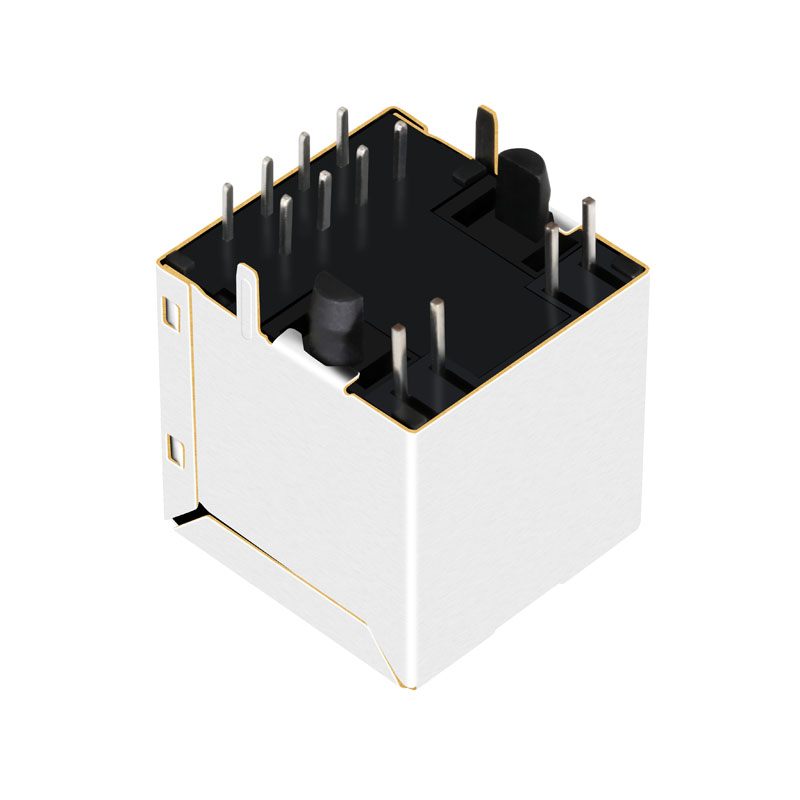

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
1 / 5
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL

Send Inquiry

Product Description

RJ45 Connector Range
Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
Products Description
Item RJ45 Female Connector
Part Number LPJD0012BENL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

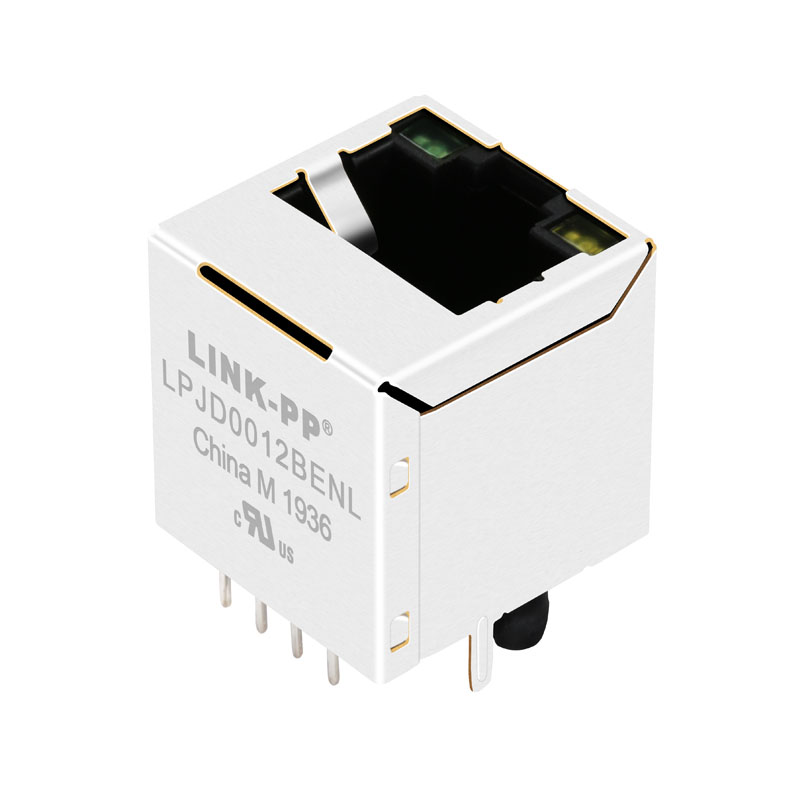

Connector Side View

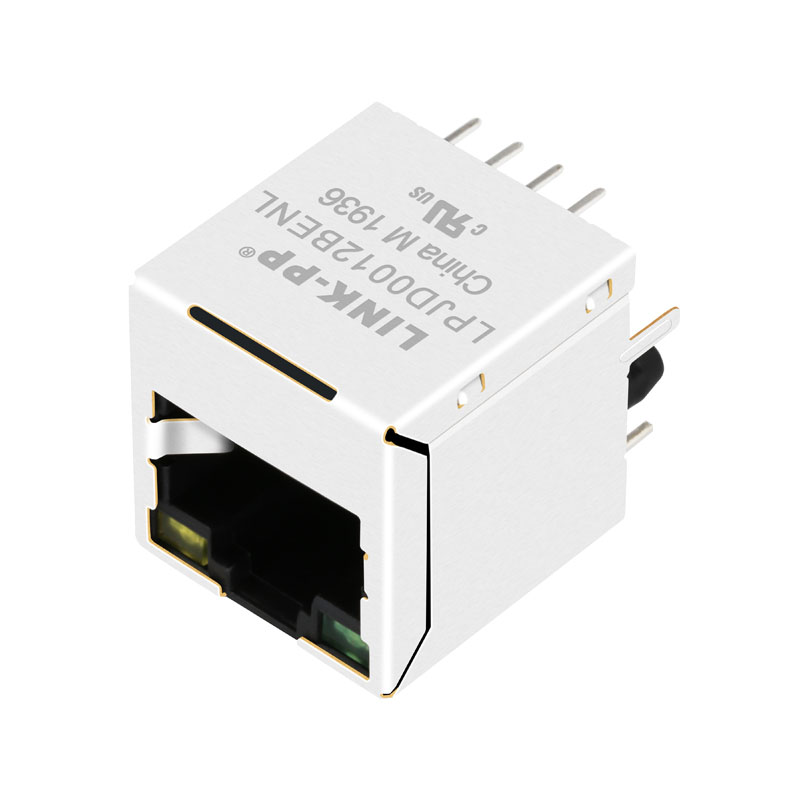

Connector Front View
Production Detail 1
Production Detail 2
Production Detail 3
Production Detail 4
☞ Click Below Products Link To Get More ☞
Product Categories Grid
Quality Standard
Testing Process
Factory Workshop
Manufacturing Line
Warehouse Storage
Shipment Inspection
Company Profile
Established in 1997, is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components of OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Corporate Facility 1
Corporate Facility 2
Frequently Asked Questions
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping cost.
3 What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production.
4 What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom requirements.
6 What is your advantage?
We have 19 years of manufacturing experience and have been a trusted partner to major global industry leaders for many years.
