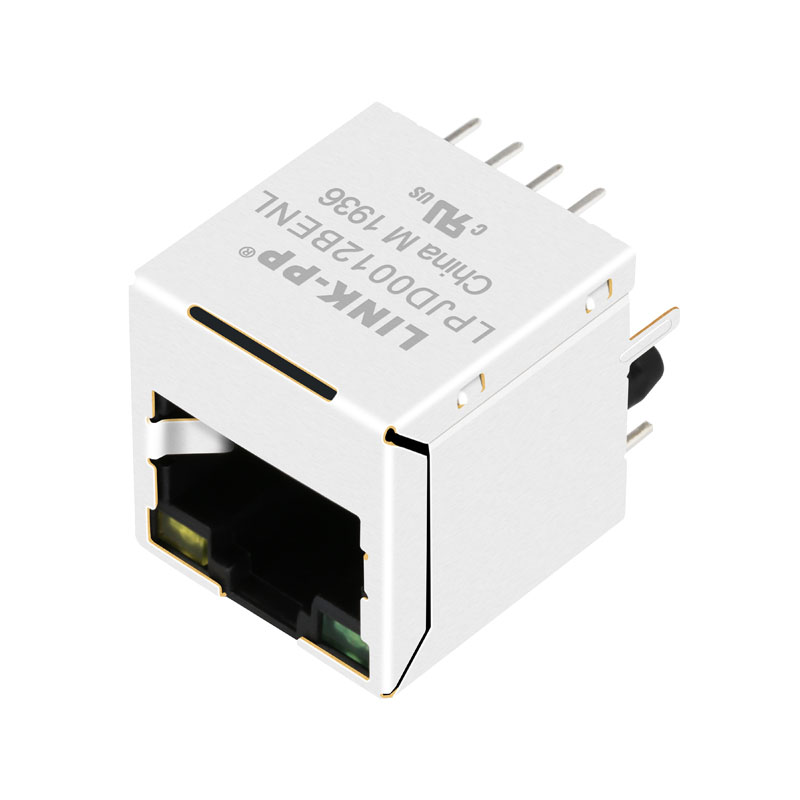

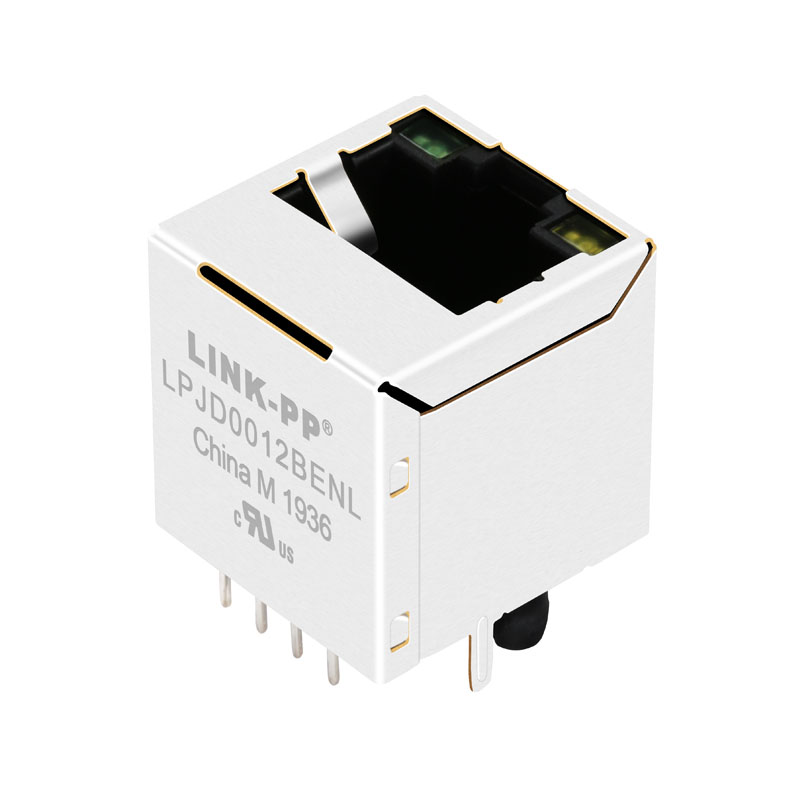

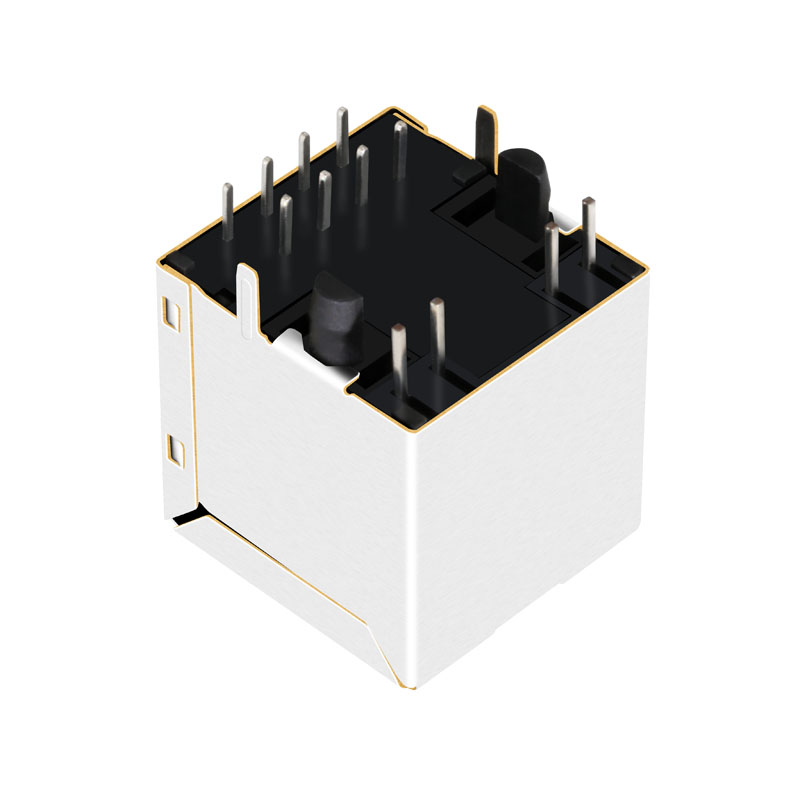

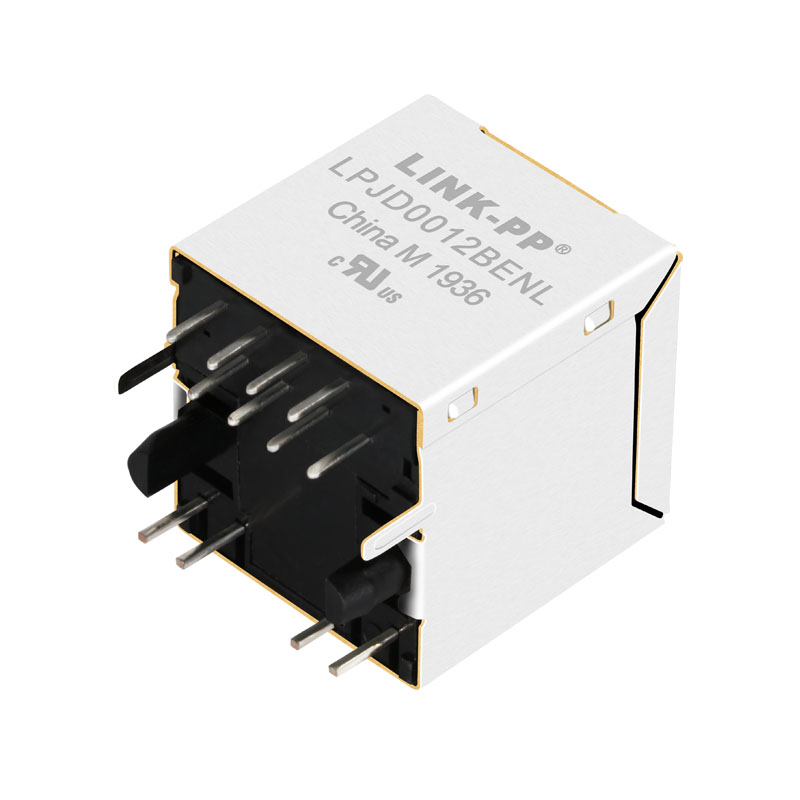

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
1 / 5
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds
10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

10/100 Base-t Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With Leds

Send Inquiry

Product Description

Ethernet Connectors Catalog
10/100 Base-T Ethernet Magnetic Vertical Top Entry Female RJ45 Jack Connector With LEDs
📋 Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 Jack Schematic Diagram
RJ45 Connector Types Selection
Technical Specifications Blueprint
🔍 Product Showcase & Details

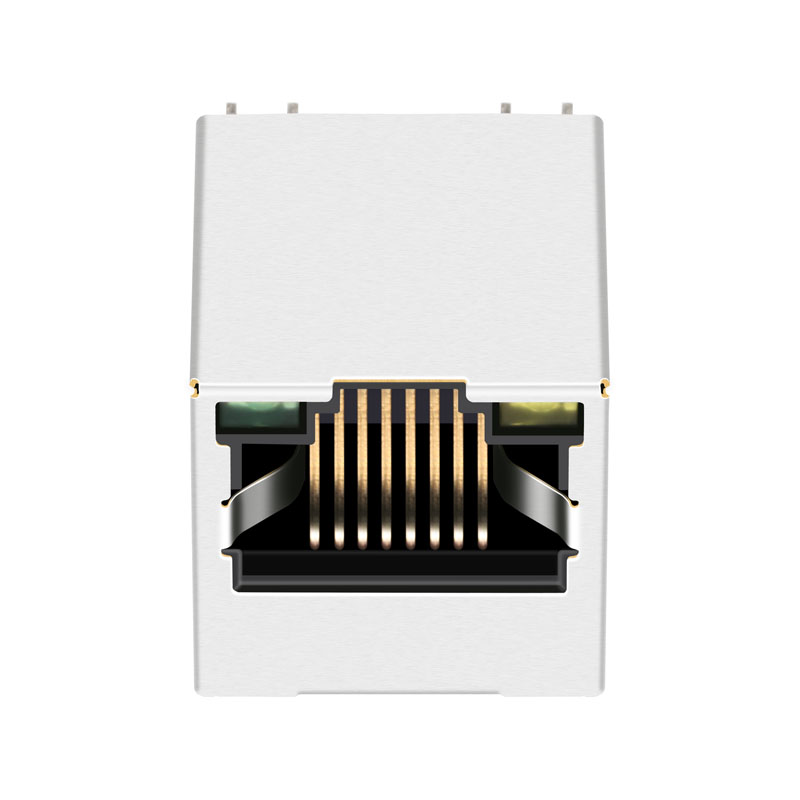

RJ45 Front View
RJ45 Side View
Product Quality Inspection
Manufacturing Standards
Warehouse Stocking
❓ FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are the customer's responsibility.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
4. What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome custom projects. Please send your inquiries to us so we can discuss the details.
6. What is your advantage?
We offer 19 years of professional manufacturing experience in magnetic telecom components, providing high-quality standards and reliable partnerships.
