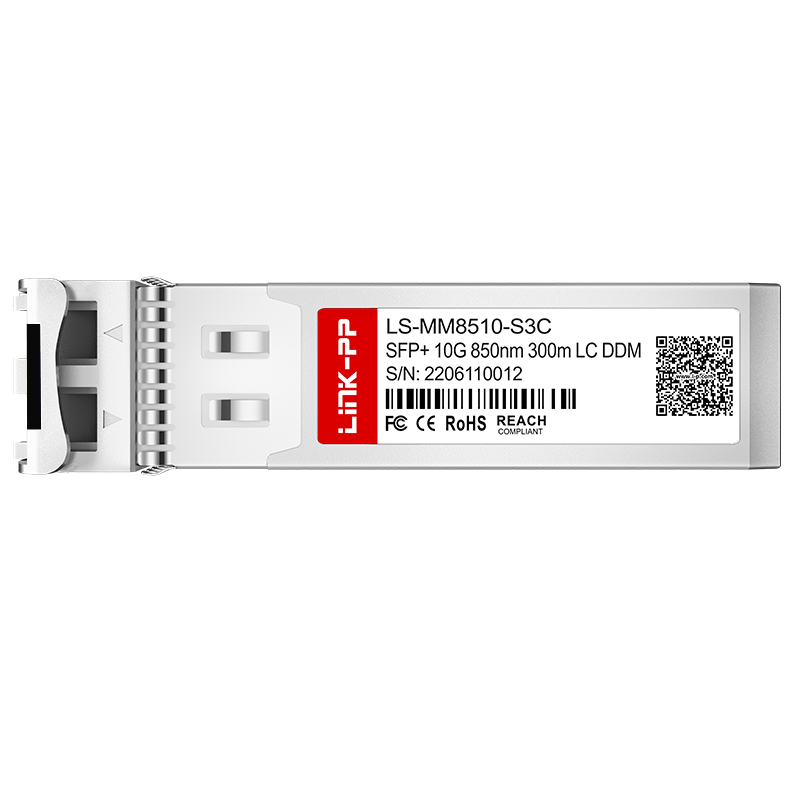

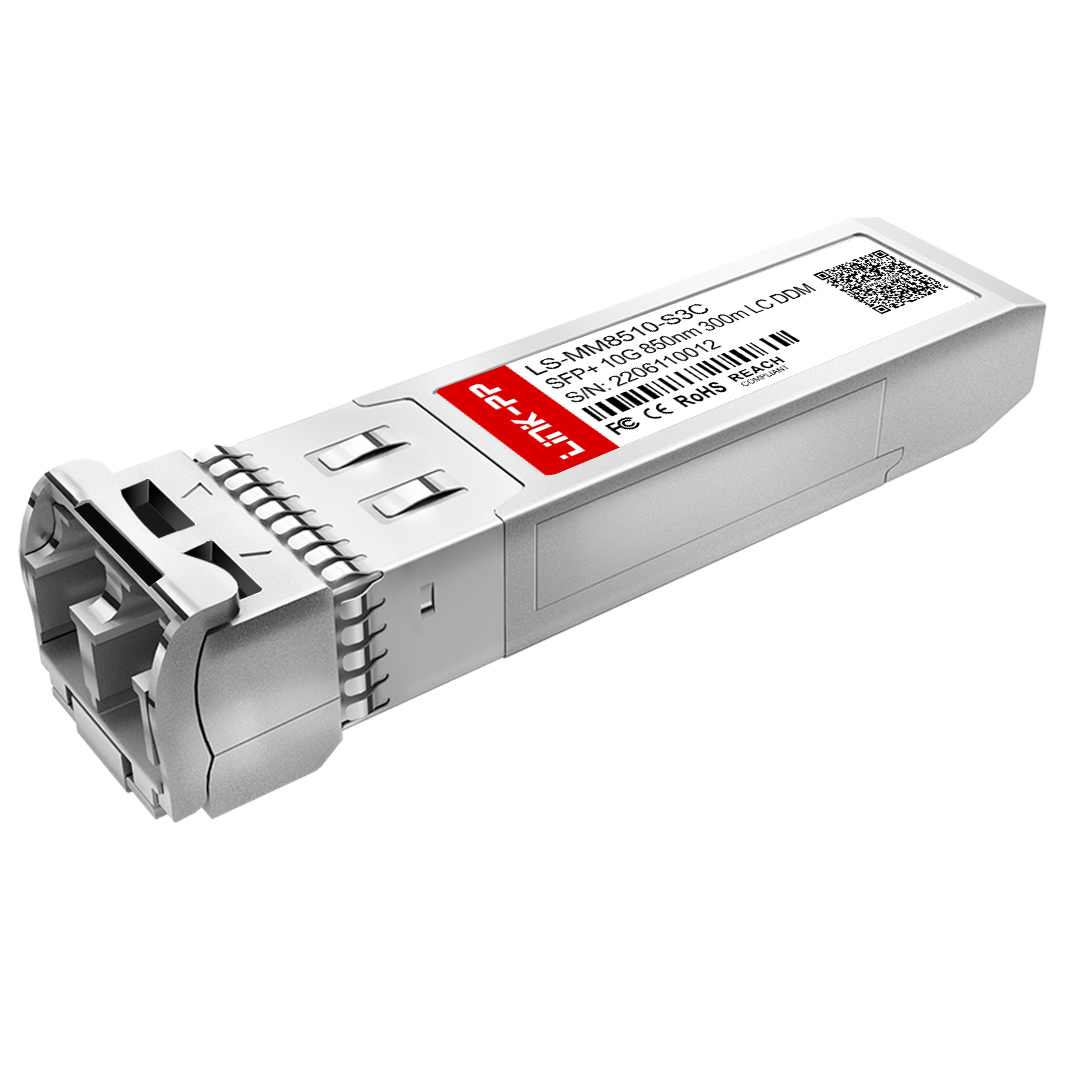

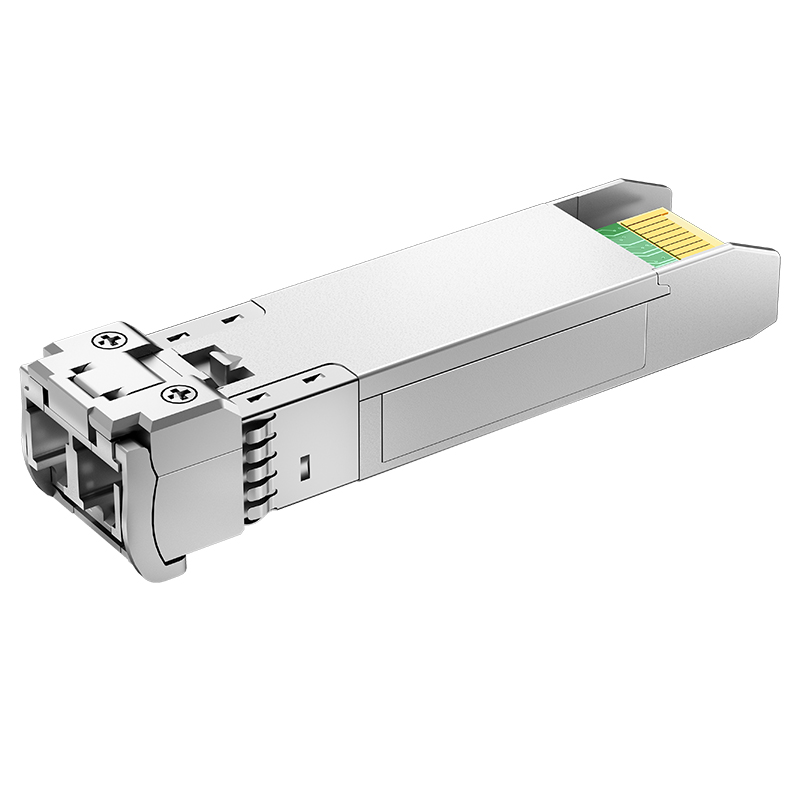

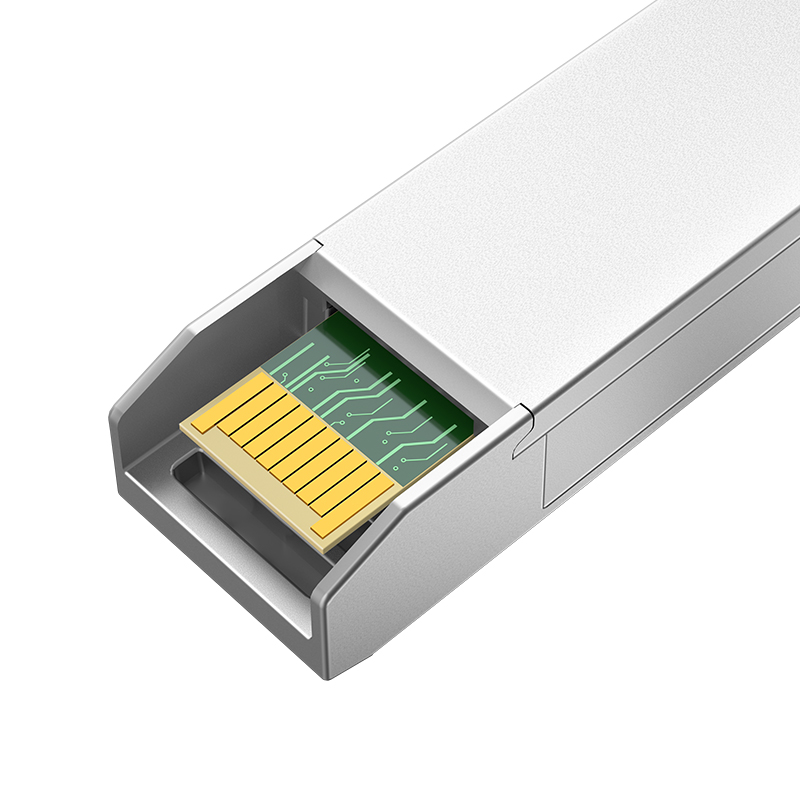

| Item | 10G SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -7.3~-1dBm |
| Receiver Sensitivity | < -11.1dBm |
| Power Budget | 3.8dB |
| Receiver Overload | -1dBm |
| Power Consumption | <1W |
| Extinction Ratio | >3dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |

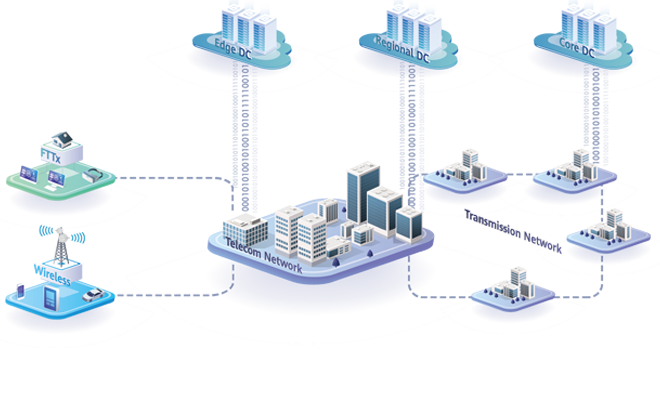

Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance in every module. Our solution provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optimized for 10G data communication with low latency.
Designed for low power consumption under 1W.
SFP+ MSA compliant and rigorously tested components.

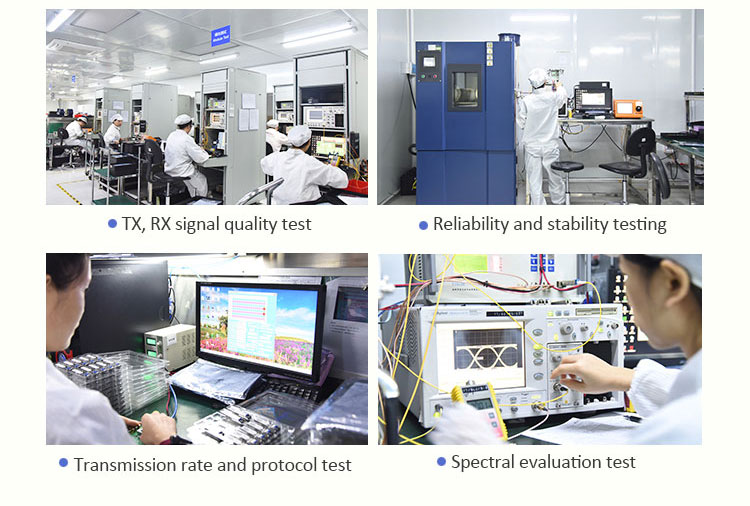

As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE, and UL. Our facilities own advanced manufacturing and test equipments imported to ensure global standards.
With an abundant productive capacity of 3000K per month, we provide short delivery times for optical modules for fixed access, wireless access, carrier Ethernet, and cloud computing networks. We utilize the latest optoelectronics technologies to serve the global market.
